Wraparound casepacker
Packaging Your product

Increase Efficiency

Reduce Labour

Improve OH&S

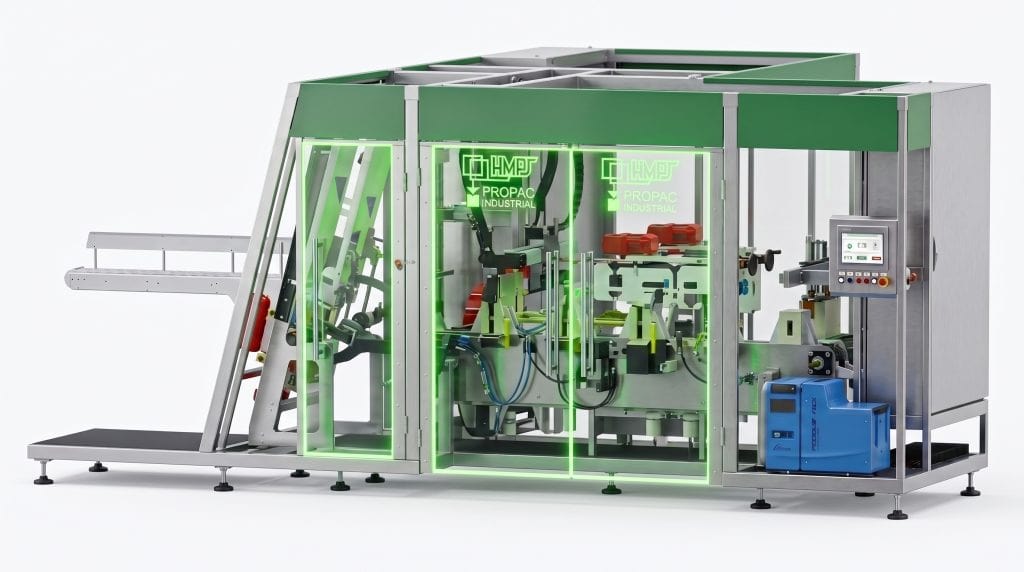

Fully automatic wrap around case packers eliminate end-of-line labour constraints with high speed efficiency.

Wraparound Casepacker Packing Frozen Meals


Our latest wraparound casepacker, packing cartons of frozen meals.The system accumulates product in groups of 6, and picks two rows at a time with a vacuum head mounted to a delta arm, creating enough product to load 6 cartons. Stacks are then transferred to an end stop, prior to a sweep with a delta arm to load the awaiting case.


See more Wraparound Casepacker

If you are interested in making contact on a business level, you can join us on LinkedIn:
https://www.linkedin.com/company/9492175

Wraparound Casepacker for Tubs With Fault Finding Doors


Wraparound casepacker packs tubs with developed fault finding doors, that indicate the status of the machine:

  • All green, running.
  • Green and orange flashing, attention required, i.e. low cartons in magazine.
  • Red and orange flashing, fault and zone for fault indicated by location of flashing.

Available now on all HMPS machines.


See more Wraparound Casepacker



If you are interested in making contact on a business level, you can join us on LinkedIn:
https://www.linkedin.com/company/9492175

Wraparound Casepacker Packing Tubs of Pet Food


Some of our clients were hand packing their tubs of pet food before. They found that they couldn’t achieve their target efficiency of packing. As a result, we developed a wraparound casepacker that helped to meet their aim. It also improves up time through the use of our new fault finding doors.


See more Wraparound Casepacker

If you are interested in making contact on a business level, you can join us on LinkedIn:
https://www.linkedin.com/company/9492175

Wraparound Casepacker Packing Boxes of Soup


Now this is an instant soup machine – 75 packs per minute. The HMPS Soup Wraparound Casepacker can pack 10 different cup of soup flavours, at a rate of 75 packs per minute. These packs are then packed into 7 cartons per box of 10 to 12 (as required), with one box being dispatched every minute. The same machine can also be adjusted to pack packets of seasoning! Packing 9 different types of seasoning at 150 packets per minute (24 per carton) and dispatching out 6 sealed and bonded cartons per minute.


See more Wraparound Casepacker



If you are interested in making contact on a business level, you can join us on LinkedIn:
https://www.linkedin.com/company/9492175

Wraparound Casepacker Packing Boxes of Hot Chocolate


The HMPS5000, an automatic casepacker, collate and pack inner cartons of Hot Chocolate sticks into wraparound cases. HMPS5000 has the capability to pack product of the same shape with height variation of 31 mm. The unique feature of this machine is its flexibility in packaging various sizes.


See more Wraparound Casepacker

If you are interested in making contact on a business level, you can join us on LinkedIn:
https://www.linkedin.com/company/9492175

Wraparound Casepacker Packing Tubs of Soup


Ship those soups and sauces outta here! Our customer in the food manufacturing industry needed a packaging solution for their tubs of soup and sauces. Our wraparound casepacker had to take the following packaging variations into consideration:

* Seven different tub weights, ranging from 300g to 800g.

* Three different tubs size diameters.

* The speeds at which these different tubs come off the production line range from 55 to 150 items a minute.

The final touch was getting these tubs of soups and sauces into cartons ready for shipping without creating any bottlenecks. The tubs are transferred onto our wraparound casepacker infeed conveyor where they are driven into grouping scrolls. The grouping scrolls accurately position multiple tubs for pick up. The scrolls remove any tub on tub accumulation ensuring each tub is in the correct position for pick up. The dual arm 2-axis delta robot will then pick the row of tubs via a vacuum gripper and place them in a collation station. The cycle is repeated to create a stack of tubs 2 layers high. The collation of tubs is then pushed from the collation station onto the collation conveyor via a servo driven pushing plate.


See more Wraparound Casepacker

If you are interested in making contact on a business level, you can join us on LinkedIn:
https://www.linkedin.com/company/9492175

Wraparound Casepacker Packing Bottles of Flavoured Milk


HMPS5000 Wraparound Casepacker is Packing a wide range of bottles of flavoured milk. This machine is able to pack anything from 500ml to 2000ml at high speed. Bottles are transfered onto the machines infeed conveyor and diverted from a single lane into a multi lane system to create the required number of columns. The required number of cartons / bottles are released from the lanes to create a layer of cartons. A servo Delta system then clamps the product and the layer is then transferred onto the wraparound blank.


See more Wraparound Casepacker

If you are interested in making contact on a business level, you can join us on LinkedIn:
https://www.linkedin.com/company/9492175

Wraparound Casepacker Packing Meat Patties


HMPS5000 Wraparound Casepacker packing 5 different frozen meat patties in speeds of between 18 and 24 packs per minute. Bags are transferred onto the infeed conveyor and diverted from 1 into 2 or 3 lanes. At the end of the conveyor they are then released onto the shorter machine infeed conveyor in the required quantity for the required shipper. The bags are then compressed and aligned together before being loaded in the shipper with a Servo driven Delta Robot in Station 2. Products are collated and positioned in the loading station where the collation of products is loaded.


See more Wraparound Casepacker

If you are interested in making contact on a business level, you can join us on LinkedIn:
https://www.linkedin.com/company/9492175

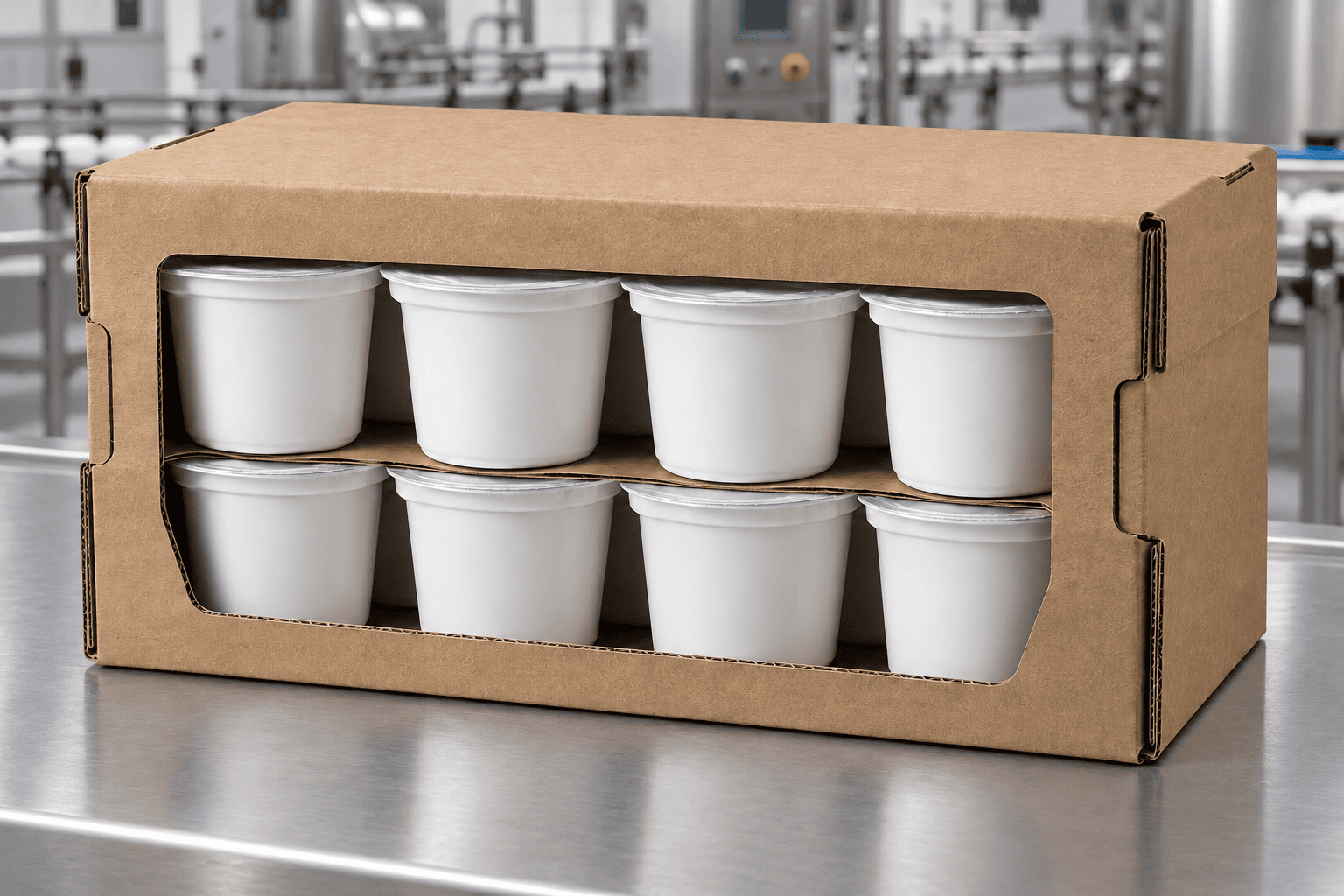

Wraparound Casepacker Packing Tubs of Yoghurt


This HMPS 5000 is a manual adjust Wraparound Casepacker for packing pre-packed chilled snack meals as tubs of yoghurt. Tubs arrive at the machine and are fed into a laning system on a conveyor. From the end of this conveyor a layer of tubs is formed and loaded onto the semi-erected wraparound case blank by a delta robot fitted with a pick up-up head. This pick-up head picks the tubs under the locating diameter on the tub body. The key here was not to pick the tub up by the lid.


See more Wraparound Casepacker

If you are interested in making contact on a business level, you can join us on LinkedIn:
https://www.linkedin.com/company/9492175

Wraparound Casepacker Packing Pouches of Yoghurt


HMPS are experts at packaging dairy! Here is an example of HMPS 7100, the high speed automatic casepacker, collect and pack pouches of yoghurt into wraparound cases. The machine has the capability of packing pouches of different volumes and with either a small or a choke proof cap. Packing 5 different sized products at max of 95 products per minute.


See more Wraparound Casepacker

If you are interested in making contact on a business level, you can join us on LinkedIn:
https://www.linkedin.com/company/9492175

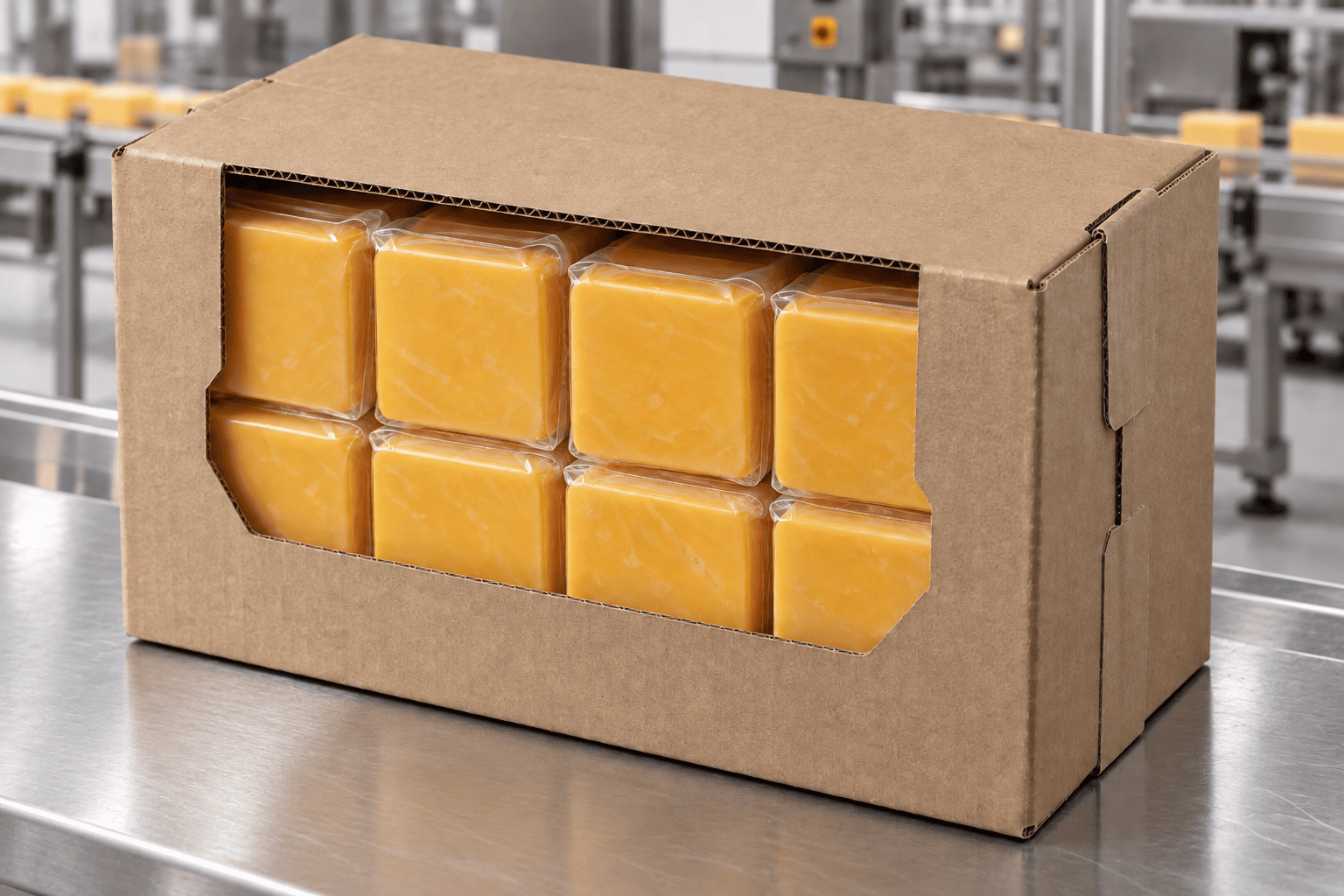

Wraparound Casepacker Packing Boxes of Cheese


A manual adjust HMPS5000 Wraparound Casepacker designed to pack boxes of cheese. Product is conveyed from upstream processes in single file and enters a diverter on the infeed conveyor. The diverter directs the product into one of several lanes depending on demand and the selected packaging configuration.


See more Wraparound Casepacker

If you are interested in making contact on a business level, you can join us on LinkedIn:
https://www.linkedin.com/company/9492175

Wraparound Casepacker Packing Tubs of Dip


HMPS designed a solution to automate end of line requirements which automated the process with minimal operator involvement. Besides, it is low-maintenance, easy-clean and adheres to Australian OH&S standards. The HMPS5000 Wraparound Casepacker eliminates end-of-line labor constraints. This delivers a solution which can pack three different size tubs of dip into various formations.


See more Wraparound Casepacker

If you are interested in making contact on a business level, you can join us on LinkedIn:
https://www.linkedin.com/company/9492175

Wraparound Casepacker Packing Baked Products


Video of HMPS Wraparound Casepacker Packing Baked Products. HMPS 5000 Wraparound Case Packer packing various configurations of baked products. This full servo system can pack up to 28 cartons per minute handling multiple product sizes and configurations. It comes complete with automatic adjustment points which allows you to improve production by reducing overall changeover time.


See more Wraparound Casepacker

If you are interested in making contact on a business level, you can join us on LinkedIn:
https://www.linkedin.com/company/9492175

Wraparound Casepacker for Pouches of Dairy Snacks


Video of HMPS Wraparound Casepacker for Pouches of Dairy Snacks. This HMPS 5000 is an automatic adjust wraparound casepacker designed to pack various pouches into a carton, which is formed and sealed with hot melt adhesive before being discharged to await palletisation. Operating at an infeed speed of 160 pouches per minute.


See more Wraparound Casepacker

If you are interested in making contact on a business level, you can join us on LinkedIn:
https://www.linkedin.com/company/9492175

HMPS5000 Wraparound Case Packer


2017 Award Winner – HMPS5000 Wraparound Case Packer. This HMPS packing solution is designed to automate the packaging requirements for customers who have a range of product weights, shapes and sizes they need to cater for. In this particular example you will see a packing solution for multivac blocks of cheese – weighing in from 2.5 kg blocks to 10 kg blocks in 1 and 2 layer configurations.

A design iteration of this Wraparound Case Packer won the Innovative Technology of the Year category at the 2017 Food & Beverage Industry Awards. That particular machine was capable of packing up to 12 different product formats, weighing between 180 and 260g. The output speed is up to 30 cartons per minute.


See more Wraparound Casepacker



If you are interested in making contact on a business level, you can join us on LinkedIn:
https://www.linkedin.com/company/9492175

HMPS Wraparound Case Packer for Boxes of Cake Mixture


HMPS developed a Wraparound Case Packer for boxes to automate the packaging of a variety of cake mixes. The process involves minimal operator involvement, while adhering to the health requirements of the food and beverage industry. The challenge in this particular project was the number of variables the machines had to deal with – one machine to pack up to 12 products formats of between 180g and 260g with an output speed of 10 to 30 cartons per minute. All of this had to be achieved seamlessly and with minimal changeover time.


See more Wraparound Casepacker



If you are interested in making contact on a business level, you can join us on LinkedIn:
https://www.linkedin.com/company/9492175
