Bag In Box

Your filled bag is formed to shape, loaded into an erected carton and sealed.

Request a Quote >

Packing your bag in box

Erected, loaded, sealed and compressed in one pass.

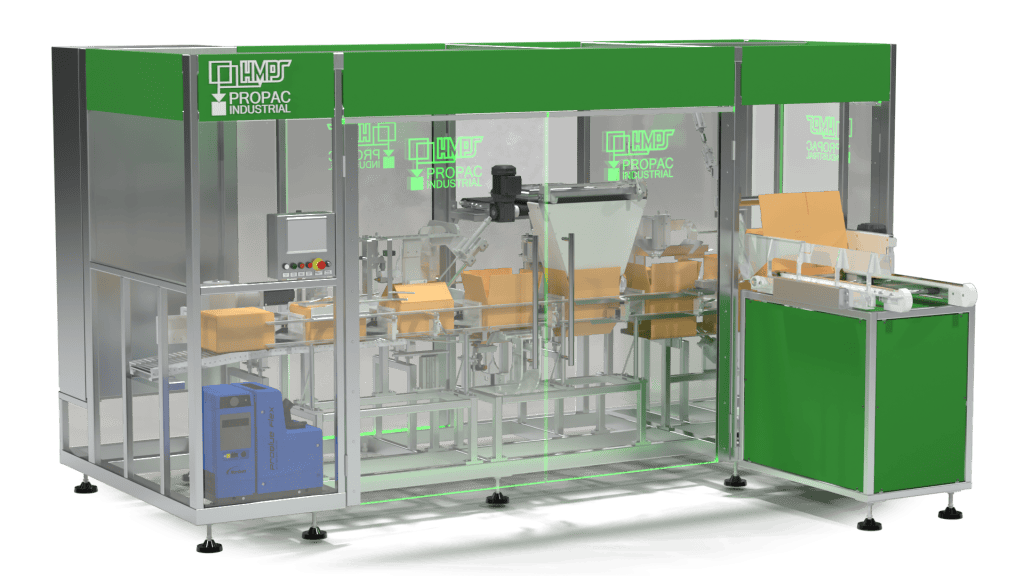

A bag-in-box case packer takes a filled, capped bag and puts it inside its carton.

The carton is erected from a magazine into an index chain while a funnel forms the bag to carton shape and travels down into the waiting carton.

From there the machine works through its stations: load, fold, hot-melt seal top and bottom, compress, and discharges a sealed carton.

The frame is heavy-walled stainless RHS, fully welded and torsionally stiff, because a machine indexing this fast for this long is only as good as what it’s bolted to.

  • Erects the carton, loads it, hot-melt seals top and bottom and compresses it, one machine, one pass
  • Fully automatic and semi-automatic configurations, running up to 30 cartons per minute
  • Takes bags from your existing filler or ours, with PLC integration to third-party filling equipment
  • Dual loading funnels and dual-lane carton magazines available, so a second filler can be added now or later
  • HMPS built Australia's first bag-in-box machinery in the 1980s, and has been developing the platform ever since

APPLICATIONS

  • Bag-in-box packs for cask wine, beer, soft drinks and postmix syrup

    Wine, beer & soft drinks

    • Cask wine · beer
    • Soft drinks
    • Postmix concentrate & syrup
  • Bulk bag-in-box packs of UHT milk, cream, cheese products and liquid egg

    Dairy & liquid foods

    • UHT milk · cream · yoghurt
    • Cheese products · plant-based milk
    • Liquid egg
  • Foodservice bag-in-box packs of juice, sauce, cooking oil and fruit purée

    Juices, sauces & oils

    • Juice · purée
    • Sauces & hot-filled products
    • Cooking oils · coffee & flavour concentrates
  • Bag-in-box packs for bulk water, ice cream, seafood and pharmaceutical liquids

    Water, frozen & special products

    • Bottled & bulk water
    • Ice cream · seafood
    • Pharmaceutical & personal care

What makes our solutions different

  • Award-winning expertise

  • Robust engineering

  • On-site & 24/7 remote support

  • Australian made

KEY STATS

Specification Standard
Typical output Up to 40 cartons/min fully automatic; up to 12 cartons/min semi-automatic, operator dependent
Carton styles RSC and full overlapping flap, pre-glued blanks, to AS3537
Carton range Around 140 × 85 × 210 mm to 270 × 210 × 250 mm on a typical build, covering roughly 2 to 11 litre bags
Bag sizes Retail cask through to 20 litre bulk, from your filler or ours
Sequence Carton erect · bag form and load · flap fold · hot-melt seal top and bottom · compression · discharge, with optional 90° rotation
Sealing Hot melt — Robatech or Nordson, your choice — with low-level alarm and auto loader available
Magazine Standard magazine with extended and large-capacity options; dual-lane magazine and dual carton erect available
Construction Heavy-walled stainless steel RHS fully welded torsional frame, stainless and engineering plastics, no continuous lubrication required
Controls Allen Bradley CompactLogix, PanelView, PowerFlex, SEW Eurodrive motors, AB servos, Sick and IFM sensors, Guardmaster and SensaGuard safety, Festo pneumatics
Power / air 415V AC 3-phase 50Hz + N + E, 20–32A · 350–400 L/min at 600 kPa (150 L/min on semi-automatic)
Safety & standards Category 3 minimum · guarding to AS4024.1 · wiring to AS3000 · cartons to AS3537 · conveyors to AS1755
Integration Third-party and in-house fillers, checkweighing, metal detection, inkjet coding on bag and carton, transfer conveyors, wrap-around case packing, robotic palletising
Design life 24-hour operation, serviceable life in excess of 15 years

our products

01

VFFS

03

ROBOTIC
PALLETISERS

04

Case packing

05

Carton Erecting
& Sealing

FAQ

What is a bag-in-box case packer?

A bag-in-box case packer erects a corrugated carton, forms the filled bag to carton shape, loads it, hot-melt seals the carton top and bottom, compresses it and discharges it sealed.

How fast can it run?

Up to 30 cartons per minute on a fully automatic machine, and up to around 12 on a semi-automatic single-operator build. Actual rate depends on carton and bag size, and very often on the filler upstream rather than on the case packer.

Can it work with a filler we already own?

Yes. PLC integration to third-party filling equipment is a normal part of scope, and we've interfaced to a range of web fillers and bagging machines. Tell us the make and model at enquiry stage so the handshake is designed rather than improvised.

What carton styles does it handle?

RSC (Including Centermeting and full overlapping flap cartons) from pre-glued flat blanks, to AS3537. Board grade and blank quality matter more than most buyers expect, so we'll give you the specification before you order cartons.

Can it handle more than one carton size?

Yes. Size-specific change parts and magazines cover each carton, and dual-lane carton magazines with dual carton erect are available where the SKU mix or the rate justifies them.

Can two fillers feed one case packer?

Yes. A dual loading funnel lets a second filler feed the same machine, and it can be specified now or fitted later. It's a common way to add capacity without buying a second case packer.

Does it need continuous lubrication?

No. The machine is built from stainless steel and engineering plastics with no continuous lubrication required, which removes both a recurring maintenance task and a contamination risk from a food environment.

Can it code the bag and the carton?

Yes. Inkjet date coding on both the bag and the carton is a standard option, along with checkweighing and metal detection integration where your product or customer requires it.

Will it integrate with case packing and palletising downstream?

Yes — that's the normal configuration. We deliver lines running filler through bag-in-box case packer, wrap-around case packer, robotic palletiser and stretch wrapper, all on one Allen Bradley control platform with one point of support.
